Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine

Name: Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine
Brand: SANROCK
Price: 1 USD

China Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine wholesale

Product name : hydraulic core drilling rig

Type : Core Drilling Rig

Maximum output torque of vertical shaft : 15KN

Application : Geological Exploration

Usage : water well.core sample

Feature : High Drilling Efficiency,portable，Light Weight

Hole dip Angle : 90-75°

After-sales service provided : Online support

Vertical shaft travel : 450mm

Supply Ability : 5000Set/Sets per Month

Power : 16.2KW

Single gross weight : 760 kg

Brand Name : SANROCK

MOQ : 1Set/Sets per Month

Maximum lifting weight of vertical shaft : 25KN

Single package size : 2150×880×1560 mm

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

Drill rod diameter : 42-60mm

Name : borehole drilling rig,core drilling rig

Drilling Diameter : 75-325mm

Drilling Depth : 200m

Maximum feed pressure of vertical shaft : 15KN

Final hole diameter : 75mm

Rated speed : 2200r/min

Payment Terms : L/C,D/A,D/P,T/T,Western Union,

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Dimension(l*w*h) : 2700*900*1500mm

Vertical shaft speed(4th gear) : 71,142,310,620 r/min

Price : negotiable

Model Number : SRC200

Delivery Time : 15-25days

Contact Now

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine

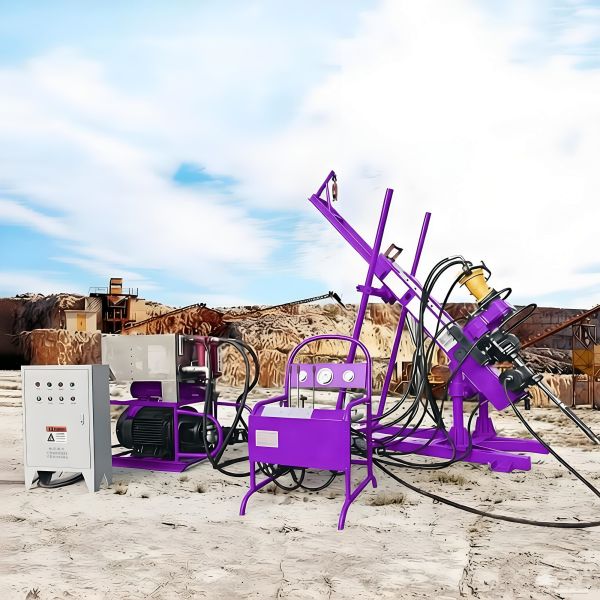

Hydraulic Exploration Geological Core Drilling Rig – 200m Depth
This hydraulic-powered exploration core drilling rig is specifically engineered for geological survey, mineral prospecting, and geotechnical investigation, with a maximum drilling depth of 200 meters. The fully hydraulic drive system delivers smooth and precise control over rotation speed, feed pressure, and rod handling, ensuring efficient coring in diverse formations including rock, soil, and weathered strata.
Key features include:
High-torque hydraulic rotary head for reliable diamond core drilling (NQ, HQ, BQ).
Hydraulic feed and retraction for accurate bit pressure control and reduced rod wear
Compact and modular design for easy transport and setup in remote or confined sites.
Durable construction suited for continuous operation in tough field conditions.

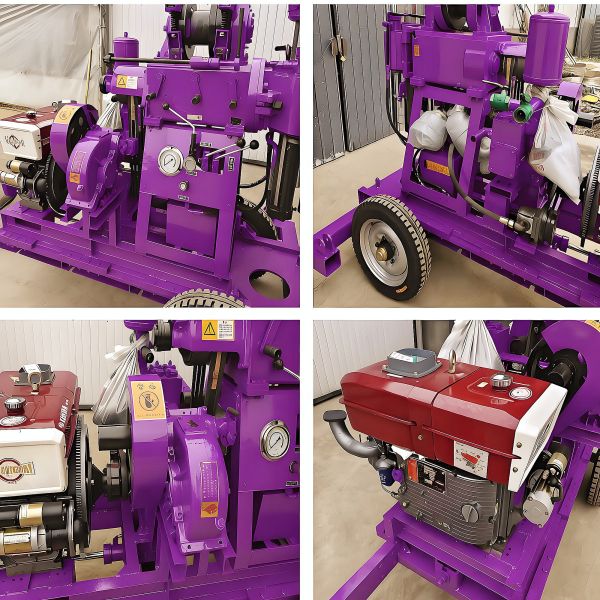

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine

Products Description

Brand Name:SANROCK

Product name :Core Drilling Rig

Name: Core Drilling Machine

Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight

Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg
